Mainboard Micronova, PN100_A01

Name: ᐉ Mainboard Micronova, PN100_A01 – Los mejores precios | BalkanEnergy.ES
Brand: Micronova
Price: 183.6 EUR

Mainboard Micronova, PN100_A01 | Electronics | Pellet Stove Parts |

Agotado

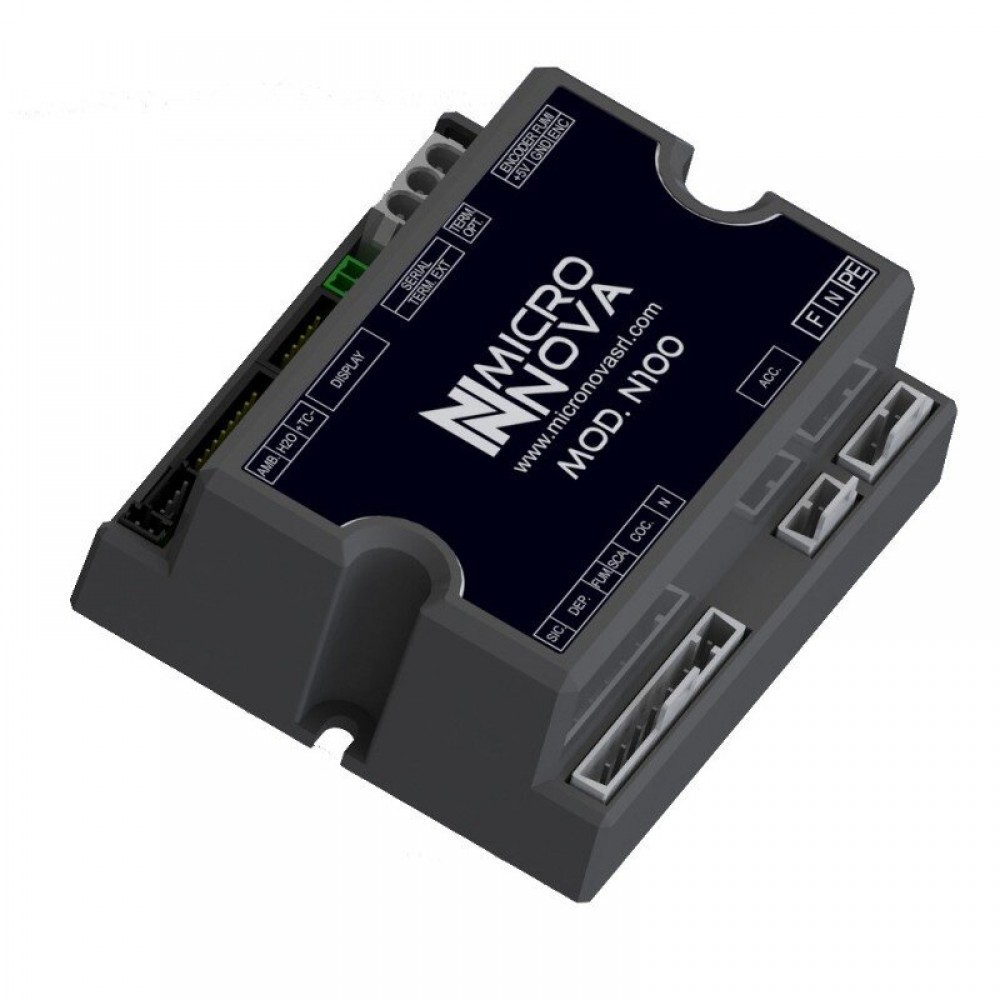

Mainboard Micronova, PN100_A01

Control board Micronova for pellet stoves.

En stock 0 piezas

Stock: Agotado
Marca: Micronova
SKU: 16.449.034

€ 183.60

IVA incluido

Sin Iva: € 153.00

Cantidad

Añadir al Carro

Consulta

Añade a la Lista de Deseos Compara este Producto

Ahorra un 5% con transferencia bancaria.

ENTREGA ESTIMADA
15.Jul.2025

Ver Política de Envíos

reembolso de 60 días
El comprador paga el franqueo de devoluciónVer detalles

Aceptamos pagos
Ver detalles

Descripción
Características

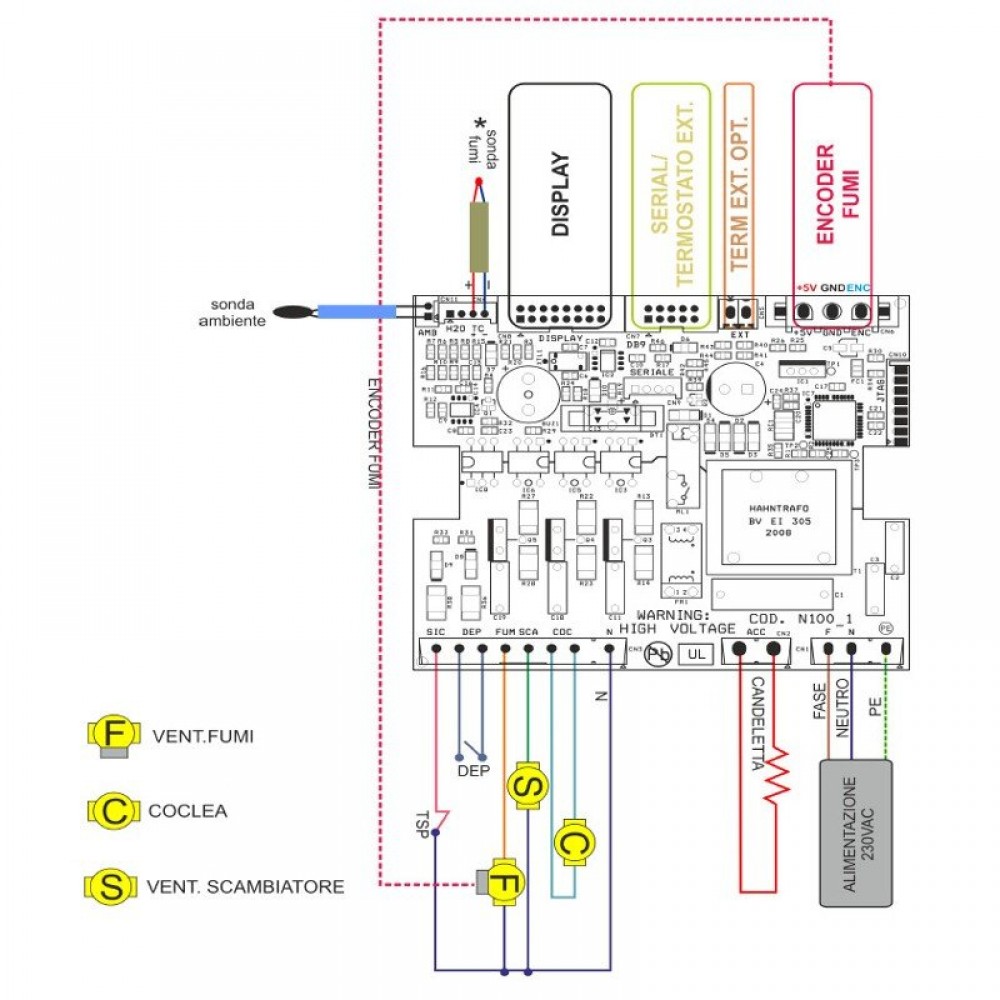

The Controller PN100 MICRONOVA is designed to manage all features of ducted air models pellet stoves using the available inputs and outputs (the display will show all programs that can be chosen in the main menu).

The reliable operating software allows easy and flexible programming of all devices that are connected to the mainboard. The N100 can replace any thermal regulator on almost all stove models on the market.

It also has available some advanced advanced features accessible by the keyboard on the screen or by a computer using the RS232 SERAMI interface or the SeramiNet software.

The control panel has 2 access levels - user accessible menu that only shows the working parameters and technical menu (accessible by password) to program the parameters.

User menu enables to change parameters such as turning ON or OFF, fan control, working temperature control, pellet loading, potter cleaning, final cleaning and alarm reset.
The technical menu has access to advanced parameters - thermic calibration, output and input activation and deactivation, resetting of counters memory, etc.
All information about operating state, room temperature, menu levels, alarms is shown on the display.

For stoves CLAM Cod. 05012549 Mod. Atlas - Mizar
