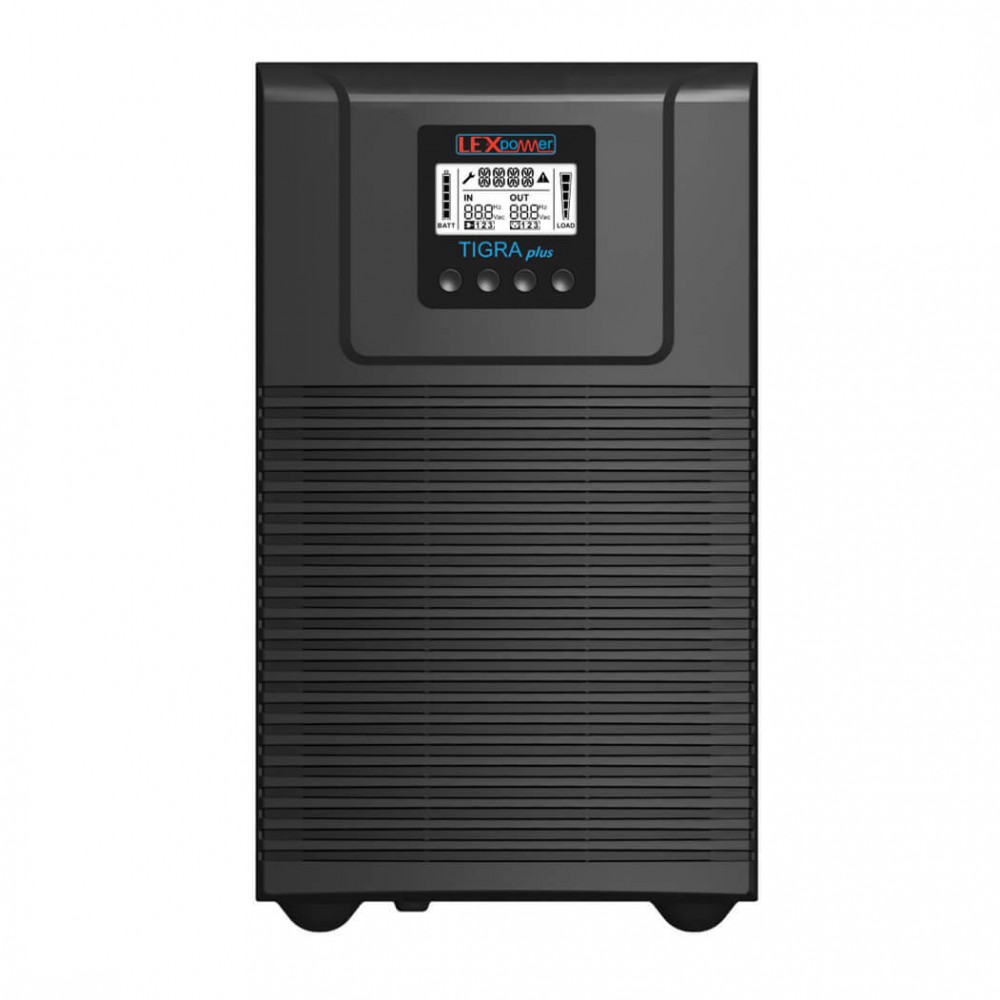

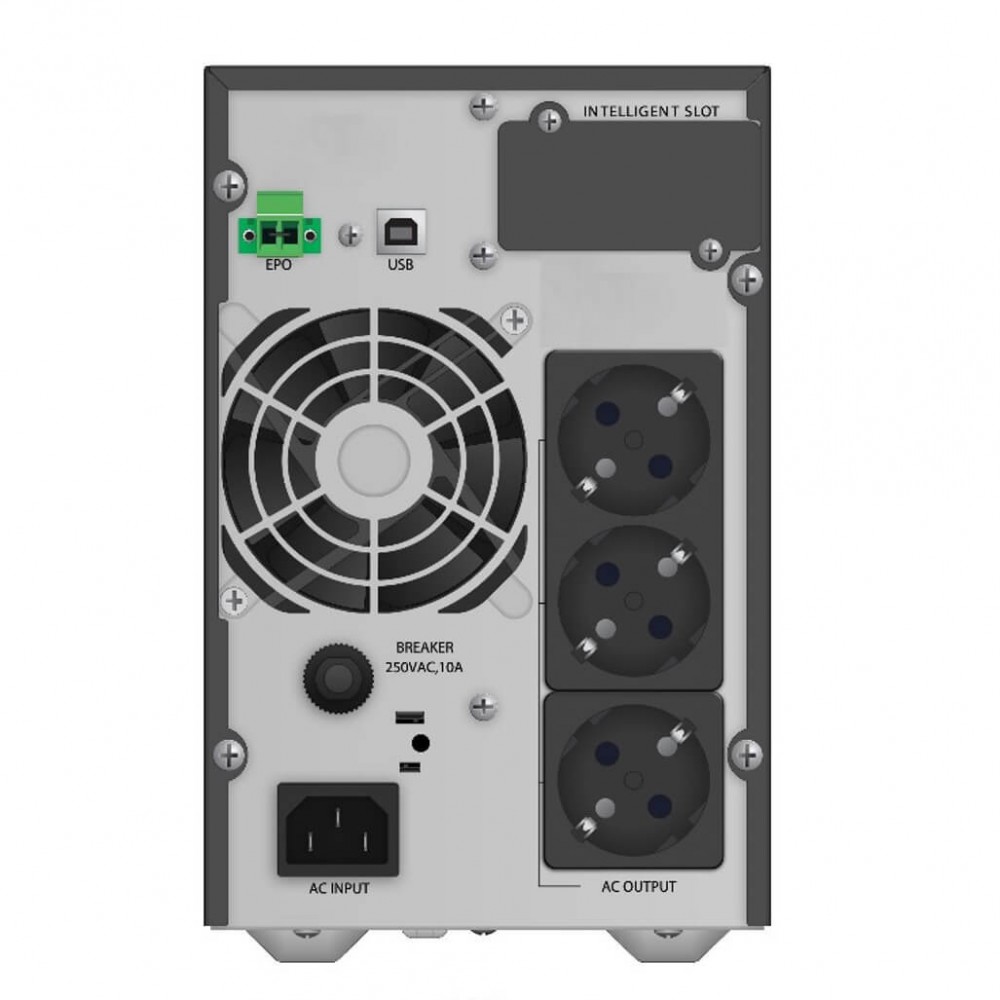

True On Line double conversion Pure Sine UPS with high efficiency suitable for sensitive electronics.
DEVOLUCIÓN DE 365 DÍAS
El comprador paga el franqueo de devoluciónVer detalles
PAGOS SEGUROS
Ver detalles
The uninterruptible power supply (UPS) is used to supply power to a device when the main power shuts down, as well as to protect that device from surges, undervoltage, overvoltage, etc. In order for a UPS to be suitable for sensitive electronics or devices containing them, the power output needs to be in the form of a sine wave. The TIGRA series are all of that and much more.
| Characteristics | |
| Peso (kg) | 9.2000 |
| Profundidad (mm) | 356 |
| Ancho (mm) | 144 |
| Altura (mm) | 228 |
| Nivel de ruido (dB) | 40 - 50 |
| Salidas | 3 Schuko |
| Capacidad | 1000VA / 900W |
| Rango de voltaje de entrada | 100 - 300 VAC |
| Rango de frecuencia de entrada (Hz) | 45 - 55 / 54 - 66 |
| Voltaje de conmutación estática By-Pass (Entrada) [VAC] | 230 ± 5% |
| Frecuencia de conmutación estática By-Pass (Entrada) [Hz] | 50 ± 1 |
| Distorsión armónica total | ≤ 5% |
| Factor de potencia | ≧ 0.99 @ nominal voltage (100% load) |
| Voltaje de salida (VAC) | 220/230/240 VAC ± 1% |
| Regulación de voltaje de CA | ± 1% |
| Frecuencia [Hz] | 50 or 60 ± 0.5 |
| Distorsión armónica | ≦ 1 % THD (Linear Load) ≦ 5 % THD (Non-linear load) |
| Tipo de batería | 2 x 12V 9Ah |
| Tiempo de recarga típico | 4 hours recover to 90% capacity |
| Corriente de carga (máx) [A] | 1.5 |
| Voltaje de carga | 27.4 VDC ±1% |
| Apagado de emergencia | Yes |
| Altitud | up to 1000m without derating |
